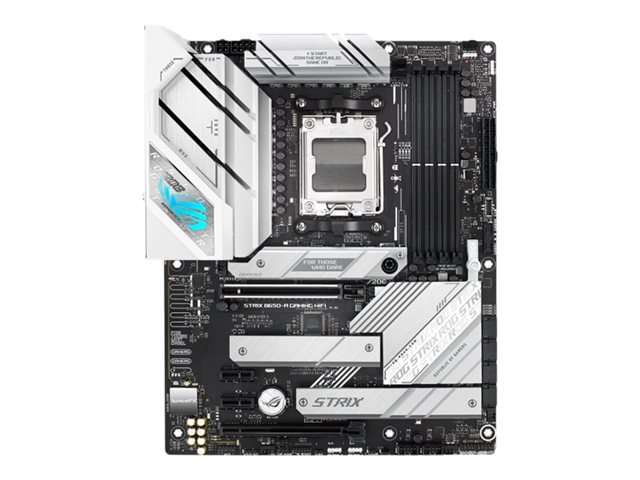

ASUS ROG STRIX B650-A GAMI WF

Спецификации

Features
Dual channel memory architecture, AMD EXPO technology
Service & Support
Limited warranty - 3 years
Manufacturer
ASUS
Manufacturer Part No
90MB1BP0-M0EAY0
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz, 5000 MHz, 4800 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio, DTS Sound Unbound
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion Slots
1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x1 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x microphone - mini-jack 2 x aerial
Internal Interfaces
4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB 3.2 Gen 2 - header 1 x audio - header 1 x Thunderbolt - header 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS OptiMem II, LANGuard, Savitech SV3H712 amplifier, jack retasking, Water Pump Header, audio jack detect technology, SupremeFX Shielding technology, BIOS FlashBack button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, M.2 heatsink, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, CrashFree BIOS 3, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, VRM heatsink design, Preboot eXecution Environment (PXE), FlexKey button, 12+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP), 6 Layer PCB
Included Accessories
Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card, 2 x M.2 rubber package
Cables Included
2 x Serial ATA cable
Software Included
ROG GameFirst VI, ROG CPU-Z, Sonic Radar III, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR
Width
30.5 cm
Depth
24.4 cm
Warranty
36 months
EAN
4711081917762
RAID Features
AMD RAID Xpert Technology
Miscellaneous / Compliant Standards
FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4, WEEE
