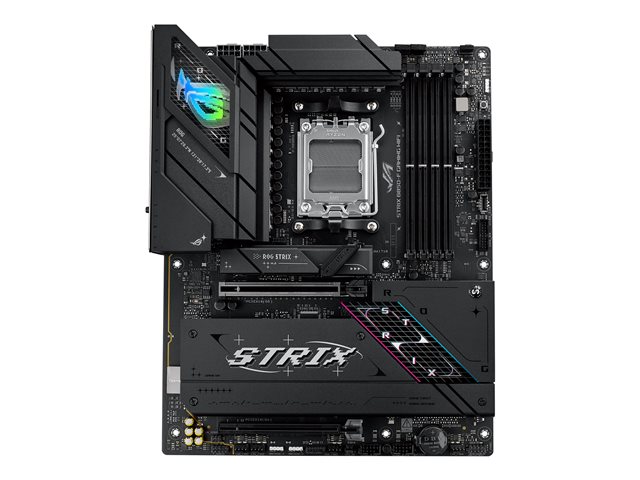

Extensive connectivity optionsThe ASUS ROG STRIX B850-F GAMING WIFI provides a variety of connectivity options including USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and HDMI, ensuring all your peripherals and devices can be connected easily.Advanced sound technologyEquipped with a Realtek ALC4080 audio codec, the motherboard supports high definition audio and DTS Sound Unbound, delivering an immersive audio experience that enhances gaming and media consumption.Durable hardware featuresDesigned for longevity and efficiency, this motherboard includes features such as ASUS SafeSlot, SupremeFX Shielding technology, and a VRM heatsink design that help maintain optimal performance while managing heat.Robust network capabilitiesWith Intel I225-V network controller and support for Wi-Fi 7 and Bluetooth 5.4, the motherboard provides connectivity options that facilitate fast and reliable networking for all online activities.User-friendly designThe ASUS ROG STRIX B850-F GAMING WIFI is equipped with features like ASUS EZ Flash 3, Q-DIMM, and a pre-mounted I/O shield to streamline installation and enhance overall user experience.
Спецификации
- FeaturesAMD EXPO technology, dual channel memory architecture
- ManufacturerASUS
- Manufacturer Part No90MB1J70-M0EAY0
- Product TypeMotherboard - ATX
- Chipset TypeAMD B850
- Processor SocketSocket AM5
- Max Processors Qty1
- Compatible ProcessorsRyzen (supports Ryzen 7000/8000/9000 Series)
- Max Size128 GB
- TechnologyDDR5
- Bus Clock4000 MHz (O.C.)
- Supported RAM Integrity CheckNon-ECC, on-die ECC
- Registered or BufferedUnbuffered
- TypeHD Audio (8-channel)
- Audio CodecRealtek ALC4080
- Compliant StandardsHigh Definition Audio, DTS Sound Unbound
- Network ControllerIntel I225-V
- Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
- Expansion Slots1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2280 M.2 Key M slot)
- Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
- Interfaces1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C 3.2 Gen 2 1 x SPDIF out 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial
- Internal Interfaces4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x Thunderbolt - header
- Power Connectors24-pin main power connector, 4-pin ATX12V connector, 2 x 8-pin ATX12V connectors
- BIOS TypeAMI
- BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3
- Sleep / Wake UpWake on LAN (WOL), wake on PME
- Hardware FeaturesASUS OptiMem II, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Water Pump Header, jack retasking, audio jack detect technology, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 16+2+2 Phase Power Design, 80A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP)
- Included AccessoriesThermal pad for M.2 SSD, ASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card, 4 x M.2 rubber package
- Cables Included2 x Serial ATA cable
- Software IncludedROG GameFirst VI, ROG CPU-Z, Sonic Radar III, Sonic Studio III, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR, ASUS DriverHub, HWiNFO, WinRAR (40 days trial), Norton 360 for Gamers (60 days trial), Adobe Creative Cloud (free trial)
- Width30.5 cm
- Depth24.4 cm
- Warranty36 months
- EAN4711387771013
- Miscellaneous / Compliant StandardsFCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4
