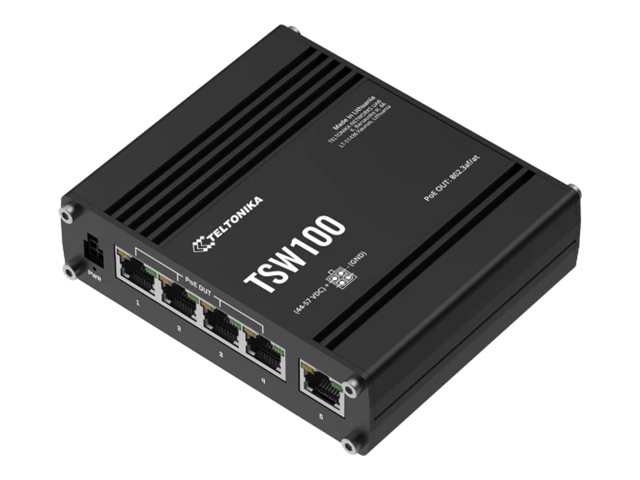

Efficient power managementThe Teltonika TSW100 features Power over Ethernet (PoE) support with a budget of 120 W, enabling devices to be powered through the network connection. This eliminates the need for additional power supplies, simplifying installation and reducing cable clutter.High performance designWith a non-blocking bandwidth of 10 Gbps, this switch is built to handle multiple connections without slowing down. This ensures consistent and high-speed connectivity for all devices on the network, supporting demanding applications.Durable constructionDesigned with an aluminum housing, the TSW100 provides enhanced durability and heat dissipation capabilities. This resilient design ensures reliable operation in harsh environments while maintaining a compact form factor.Comprehensive compatibility standardsThe switch complies with various IEEE standards including IEEE 802.3u, IEEE 802.3af, and IEEE 802.3at. This broad compatibility ensures that it can easily integrate into existing network systems, providing versatility for different setups.Flexible temperature rangeOperating effectively in temperatures from -40°C to 75°C, the Teltonika TSW100 can be deployed in a wide array of environments. This makes it suitable for various applications, ensuring reliability regardless of external conditions.
Спецификации
- ManufacturerTELTONIKA NETWORKS
- Manufacturer Part NoTSW100010000
- Device TypeSwitch - 5 ports - unmanaged
- Enclosure TypeDIN rail mountable, surface-mountable, wall-mountable
- CapacityPacket buffer size: 128 KB
- FeaturesAuto-uplink (auto MDI/MDI-X), PROFINET, ground points, aluminium housing
- Compliant StandardsIEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
- Status IndicatorsPower, status
- Interfaces4 x 1000Base-T RJ-45 PoE - 30 W 1 x 1000Base-T RJ-45
- Power DeviceExternal power adapter
- LocalisationEurope
- Width11.5 cm
- Depth10.12 cm
- Height3.22 cm
- Weight350 g
- Min Operating Temperature-40 °C
- Max Operating Temperature75 °C
- Humidity Range Operating5 - 95% (non-condensing)
- Warranty12 months
- EAN4779027312828
- SubtypeGigabit Ethernet
- Ports5 x 10/100/1000 (4 PoE)
- PoE Budget120 W
- PerformanceNon-blocking bandwidth: 10 Gbps
- MAC Address Table Size2K entries
- Jumbo Frame Support9216 bytes
- Power Provided62 Watt - DC 48 V - 1.3 A
- Voltage RequiredAC 100-240 V (50/60 Hz)
- Electric Current Required1.5 A
- Miscellaneous / Compliant StandardsIP30, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, ANATEL, CB, E Mark, EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2.3, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:2004, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020
- Shipping Width17.5 cm
- Shipping Depth15 cm
- Shipping Height3.5 cm
